| Ask Lasest Price | |
| Brand Name : | Cummins |
| Model Number : | HX-40GF |
| Certification : | CE |
| Price : | 7000 |
| Payment Terms : | T/T, L/C, Western Union |
| Supply Ability : | 50 units per month |
| Delivery Time : | In 7 days after receive the deposit |

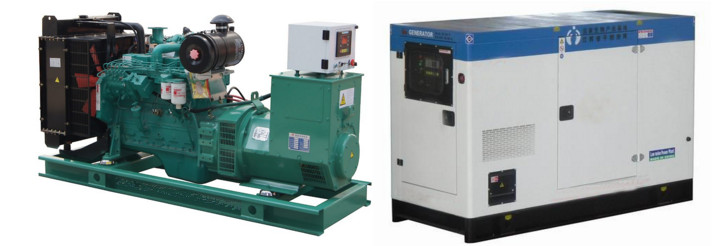

40KW/50KVA Cummins diesel generator specification
| 64KW/80KVA Cummins diesel generator | ||
| Diesel Generator | Genset Model | HC-40GF |
| Rated Frequency | 50Hz | |
| Power Factor | 0.8 | |
| Rated Voltage | 400/230V or as per your requirement | |
| Rated Power(KW/KVA) | 40/50 | |
| Standby Power(KW/KVA) | 44/55 | |
| Phase/Wire | 3-phase,4-wire | |
| Open type Overall Size(mm) | 1800×800×1400 | |
| Open type Weight(kg) | 800 | |
| Diesel Engine | Model | 4BTA3.9-G2 |
| Type | water-cooled,inline,4-stroke,direct injection,wet cylinder liner,1500rpm | |
| Rated Power(KW/KVA) | 60/75 | |
| Intake Type | Turbocharged | |
| No. of Cylinder | 4 | |
| Bore×Stroke(mm) | 102×120 | |
| Piston Speed(m/s) | 7.9 | |
| Compression Ratio | 17.3:1 | |
| Noise Level(dBA) | ≤100 | |
| Exhaust Temperature(℃) | 84.3 | |
| Lube Oil Capacity(L) | 16 | |
| Rated Fuel Consumption(L/h) | 9 | |
| Displacement(L) | 3.9 | |
| Governing Type | Electrical | |
| Alternator | Model | UCI 224D (STAMFORD) |
| Rated Power(KW/KVA) | 40/50 | |
| Excitation Type | Brushless | |
| Insulation Class | H | |
Diesel generator structure chart
Silent canopy
Export package
Standby spare parts
Installation draft
OEM partner
|
|
