| Brand Name : | Aoling |
| Model Number : | 6BD-G |
| Certification : | CE |
| Price : | Negotiable by model |
| Payment Terms : | T/T |
| Supply Ability : | 500Units/month |
| Delivery Time : | In 7 days after receive the deposit. |

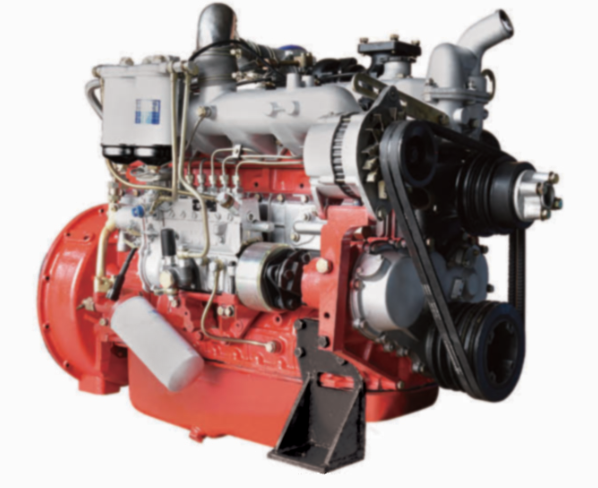

3000rpm 6BD-G Diesel Engine Prime Power 106KW For Power Of The Fire Fighting Pump In Red
Why choose us?
a,Only select high standard spare parts, such as fuel pump, cylinder head, cylinder liner, piston, engine block,water pump, oil pump, air/fuel/oil filter, radiator,starter,charger alternator.
b, Quality-Control.
Raw Material Purchase Inspection.
Engine assemble inspection.
Engine testing inspection, avoid oil-water-air-leak problem . Meet 100% power loading.
Before pack-Inspection.
c. Spare parts available.
d, Engine manual instruction and parts catalog together with engine.
e,All-life service after sale.
6BD-G
| Project | Technical parameters |
| Type | Vertical, vertical, water cooled, four stroke, natural breathing |
| fuel injection system | Straight line mechanical pump |
| Air inlet mode | normally aspirated |
| The number of cylinders | 6 |
| Bore stroke (mm) | 102*118 |
| Total displacement(L) | 5.785 |
| ignition order | 1-5-3-6-2-4 |
| Crankshaft rotation direction | Counter clockwise (for the flywheel side) |
| Compression ratio | 17.5:1 |
| Rated speed (r/min) | 3000 |
| Rated power(kW/ r/min) | 96 |
| 1 hour power(kW/ r/min) | 106 |
| Idle speed (r/min) | 750±50 |
Lowest fuel consumption rate (g/kW.h) | 229 |
| Fuel | Light diesel oil GB252 |
| lubricating system | Pressure splash lubrication |
| Net quality (kg) | 550 |
| The bare metal size (mm) | 1068*609*1031 |
| emission level | European II or European (electronic control ECU) |
Engine in Stock
Export plywood package
|
|
