| Brand Name : | Ricardo |
| Model Number : | HX-40GF |
| Certification : | CE |
| Price : | USD4000/unit |
| Supply Ability : | 200 units per month |
| Delivery Time : | 5~10 work days |

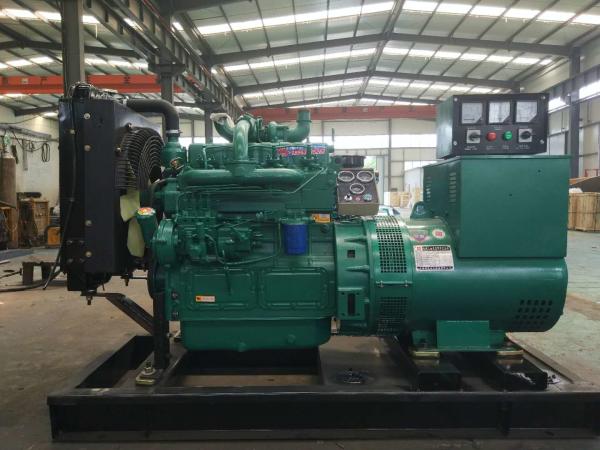

We privides a full line of new brand and high quality diesel generator. 200KVA Diesel Generator powered by Weichai, Cummins, Perkins, Deutz, Lovol, Yuchai or Ricardo engine. Weichai powered electric diesel generator set with reliable performance and high technology. Each and every equipement is strictly tested before delivery .
| gensets model(electric dynamo generator) | HX-40GF | ||||||
| Engine | K4100ZD | ||||||
| Power | 50kva/40kw | ||||||
| Rated Voltage | 400/230V | ||||||
| Rated frequency(HZ) | 50HZ | ||||||
| Rated Speed | 1500rpm | ||||||
| Power Factor(COS) | 0.8(lagging) | ||||||
| Dimensions of open type(mm) (L×W×H) | 1700*700*1400 | ||||||
| Dimensions of sient type(mm) (L×W×H) | 2000*1000*1400 | ||||||
| Gross weight of open type (kg) | 700 | ||||||
| Gross weight of silent type(kg) | 800 |
| Model | Prime Power(KW) | Standby Power(KW) | Current(A) | Engine Model | Displacement (L) | Fuel Consumption(g/kw.h) | Size(L*W*H)mm | Weight (Kg) |
| HX-20GF | 20 | 22 | 36 | ZH490D | 2.5 | 251 | 1600×650×1200 | 500 |
| HX-24GF | 24 | 26.4 | 43.2 | K4100D | 3.61 | 248 | 1700×700×1320 | 550 |
| HX-30GF | 26 | 30 | 54 | K4100D | 3.61 | 248 | 1700×700×1320 | 580 |
| 28 | 30 | 54 | K4102D | 3.61 | 244 | 1700×700×1320 | 600 | |
| 30 | 32 | 60 | K4100ZD | 3.61 | 238 | 1700×700×1350 | 650 | |
| HX-40GF | 36 | 40 | 64 | K4100ZD | 3.61 | 238 | 1700×700×1400 | 700 |
| 40 | 44 | 80 | HX4105ZD | 3.95 | 235 | 1700×750×1500 | 720 | |
| HX-50GF | 40 | 50 | 90 | HX4105ZD | 3.85 | 235 | 1700×750×1500 | 750 |
| 44 | 50 | 90 | R4105ZD | 4.33 | 232 | 1800×800×1600 | 800 | |
| HX-60GF | 55 | 60 | 108 | R4110ZLD | 4.85 | 230 | 2000×800×1600 | 900 |
| 60 | 66 | 72 | R6105ZD | 6.49 | 232 | 2200×850×1600 | 1000 | |
| HX-75GF | 64 | 75 | 135 | R6105AZD | 6.49 | 232 | 2200×850×1600 | 1050 |
| HX-100GF | 88 | 100 | 180 | R6105AZLD | 6.75 | 232 | 2200×850×1600 | 1100 |
| 100 | 110 | 200 | R6105IZLD | 7.01 | 232 | 2200×850×1600 | 1200 | |
| HX-120GF | 110 | 120 | 216 | R6105IZLD1 | 7.01 | 232 | 2200×850×1600 | 1250 |
| 120 | 130 | 234 | R6110ZLD | 7.35 | 230 | 2300×900×1700 | 1300 | |
| HX-150GF | 130 | 150 | 270 | HX6113ZLD | 7.522 | 230 | 2500×1000×1700 | 1400 |
| HX-180GF | 160 | 180 | 324 | HX6126ZLD | 9.68 | 220 | 2700×1000×1900 | 1500 |
| HX-200GF | 180 | 200 | 360 | HX6126ZLD1 | 9.68 | 220 | 2700×1000×1900 | 1600 |
| HX-250GF | 220 | 250 | 450 | HX618ZLD | 9.68 | 220 | 2700×1000×1900 | 1700 |
| HX-300GF | 250 | 300 | 540 | HX618ZLD1 | 9.98 | 220 | 2700×1000×1900 | 1750 |
Silent canopy
Controller
Package
Spare parts optional
Installation draft
Cooperator and certificate
|
|
