5S service for you: Smile,Speed,Standard,Sincere,Satify
10 Years
| Ask Lasest Price | |
| Brand Name : | Huaxin |
| Model Number : | HX |
| Certification : | CE |
| Price : | Negotiable by model |
| Payment Terms : | T/T |
| Supply Ability : | 1000Units/month |
| Delivery Time : | In 7 days after receive the deposit. |
Why choose us?
a,Only select high standard spare parts, such as fuel pump, cylinder head, cylinder liner, piston, engine block,water pump, oil pump, air/fuel/oil filter, radiator,starter,charger alternator.
b, Quality-Control.
Raw Material Purchase Inspection.
Engine assemble inspection.
Engine testing inspection, avoid oil-water-air-leak problem . Meet 100% power loading.
Before pack-Inspection.
c. Spare parts available.
d, Engine manual instruction and parts catalog together with engine.
e,All-life service after sale.
| Engine Model | 295D | 2100D | 495D | 495ZD | K4100D | K4100ZD | K4102D | K4102ZD | ||
| Type | 4 Strokes, Water Cooling, Inline, Swirl Combustion Chamber | |||||||||
| Rated Power/Speed(kw/rpm) | 13.5/1500 | 15/1500 | 26.5/1500 | 36/1500 | 30.1/1500 | 41/1500 | 33/1500 | 44/1500 | ||
| 16.2/1800 | 18/1800 | 31/1800 | 41/1800 | 36/1800 | 47/1800 | 39/1800 | 50/1800 | |||
| Cylinder Number | 2 | 4 | ||||||||
| Bore*Stroke | 95*115 | 100*115 | 95*115 | 100*115 | 102*115 | |||||
| Total Displacement of Piston(L) | 1.63 | 1.81 | 3.26 | 3.61 | 3.76 | |||||
| Pressure Ratio | 17 | 17 | 19 | |||||||
| Firing Order | 1-3-4-2 | |||||||||
| Air Intake Type | Naturally Asp. | Naturally Asp. | Turbo. | Naturally Asp. | Turbo. | Naturally Asp. | Turbo. | |||
| Average Effective Pressure(Kpa) | 650 | 930 | 650 | 914 | 702 | 702 | ||||
| Fuel Consumption(g/kw.h) | 265.2 | 263.8 | 243.3 | 239.6 | 243.3 | 239.6 | 243.3 | 239.6 | ||
| Oil Consumption(g/kw.h) | 2.04 | 2.04 | 2.04 | |||||||
| Exhaust Temperature(℃) | 430 | 430 | 470 | 540 | 470 | 540 | 470 | 540 | ||
| Crankshaft ratating | Inverse Hour(Facing to the power output end) | |||||||||
| Cooling Mode | Forced Cooling | |||||||||
Produce and testing line

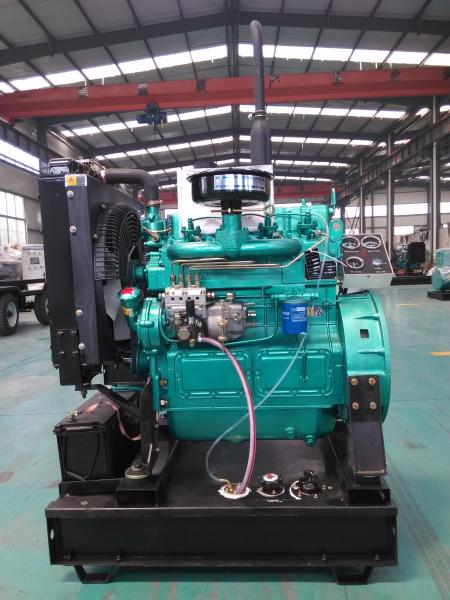

Engine in Stock
Export plywood package
|
|
